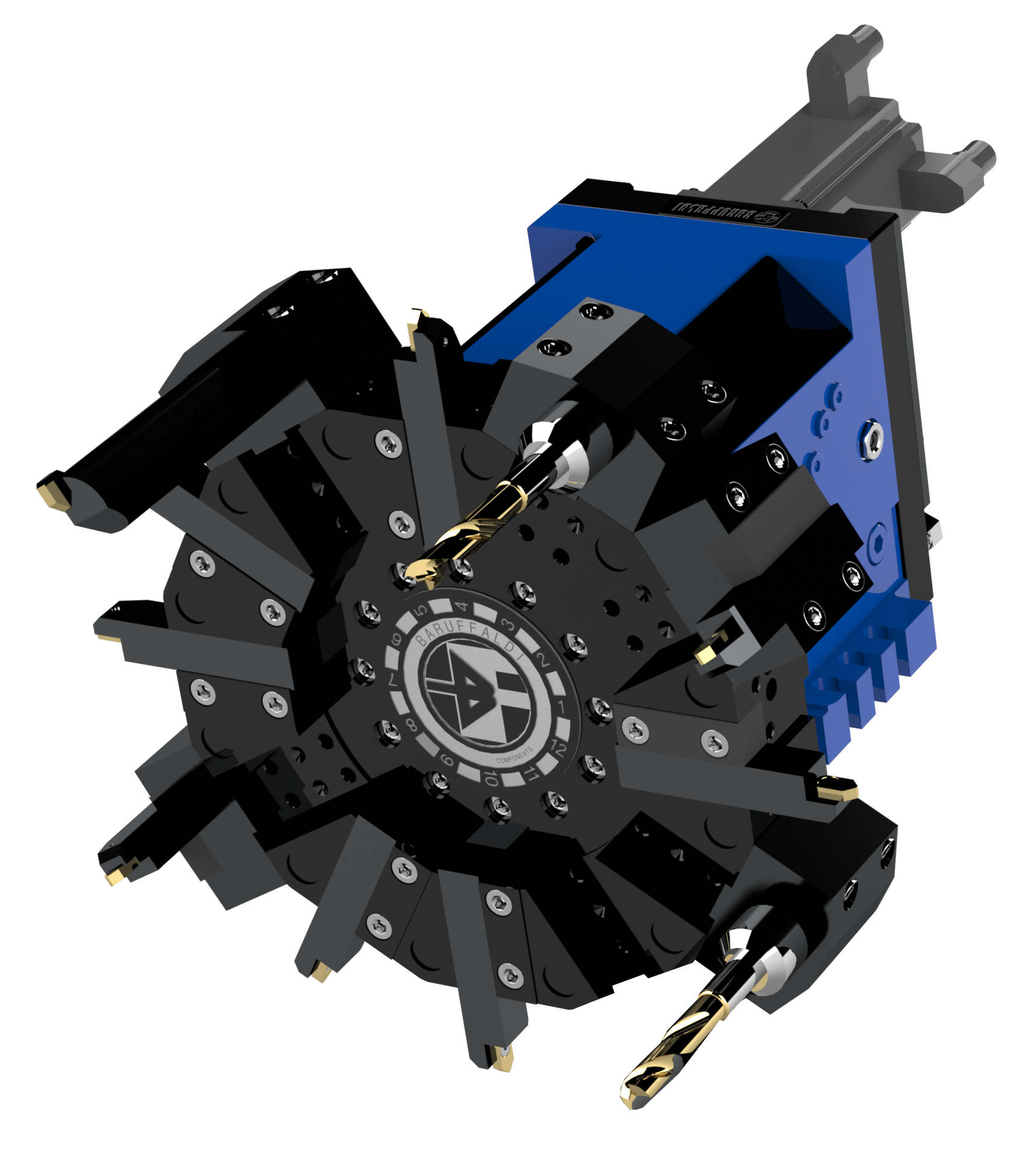

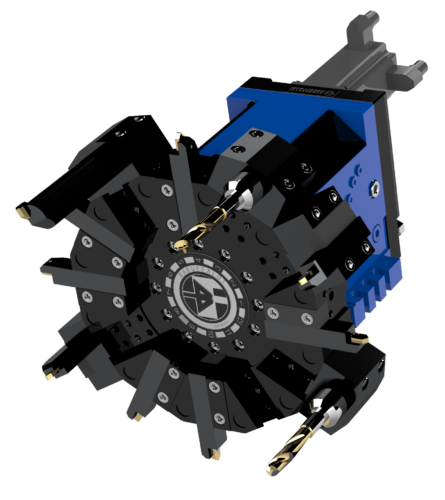

Leonardo Series – TC

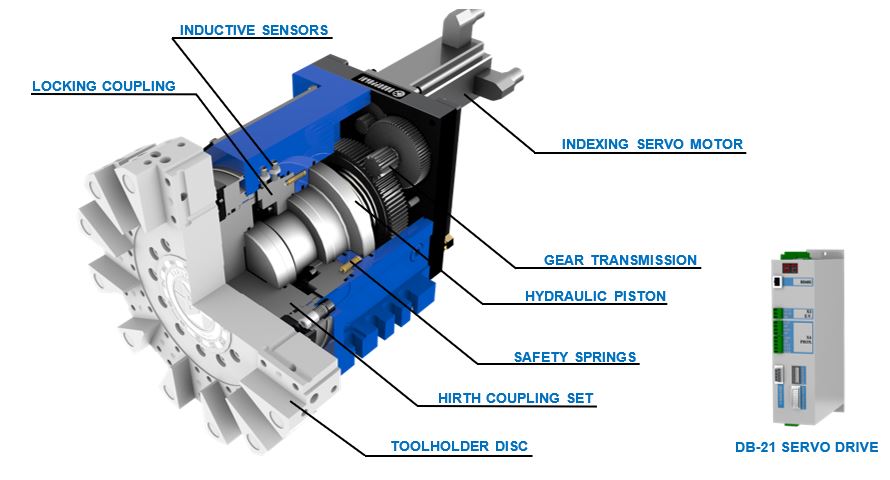

The Tool Disc rotates and positions thanks to a Servo Motor controlled by the new generation Servo Drive type DB21.
The Locking Coupling moves backwards, when hydraulic oil pressure acts on its front side, disengaging Hirth Coupling Set. The turret is thus ready to index.
Motor drives the Tool Disc by means of a Gear Transmission, to achieve tool change.
During turret locking sequence, oil pressure acts on the rear side of the Locking Coupling, pushing it forward and making Hirth Coupling Set engage. The turret is now ready for machining.
The locking and unlocking status is constantly monitored by 2 Inductive Sensors.
The turret is also equipped with Safety Springs that move Locking Coupling forward when oil pressure is close to zero.
The Leonardo Line turrets are supplied with new generation Drive, named DB-21 that allows the turret remote control and through a digital display that shown constantly the turret status.
- Double Power Supply 230V/400V
- Power supply frequency 50/60Hz
- Activation of 30 alarms
- Working condition: -10°C ÷ 45°C
- Digital Display
- Position Feedback
